Quick answer: An embroidery machine works by reading a digitized design file that tells it exactly where to place every stitch. The fabric is clamped in a hoop attached to a motorized arm that moves it precisely along X and Y axes. Meanwhile, a needle moves up and down, forming lockstitches with a bobbin thread underneath. The machine follows the file stitch by stitch, stopping for color changes (or switching automatically on multi-needle machines) until the design is complete.
Embroidery machines can stitch detailed logos and lettering in minutes, but how do they actually do it? Here's a simple explanation of how embroidery machines work, from the design file to the finished stitches, plus the difference between home and commercial machines.
The Main Parts of an Embroidery Machine
- Needle and needle bar: pushes the top thread through the fabric.
- Bobbin and rotary hook: catches the top thread and locks it with bobbin thread underneath.
- Hoop: holds the fabric and stabilizer tight.
- Embroidery arm (pantograph): moves the hoop in precise X and Y directions.
- Control panel and memory: stores and reads design files.
- Thread tension system: keeps stitches balanced.
How an Embroidery Machine Works, Step by Step
- Digitizing: artwork is converted into a stitch file (such as PES or DST) containing coordinates, stitch types, densities and color stops.
- Loading: the file is sent to the machine by USB, Wi-Fi or cable.
- Hooping: fabric and stabilizer are clamped in the hoop and attached to the arm.
- Stitching: the needle moves up and down in one spot while the arm moves the hoop underneath it to the next coordinate. It can make hundreds of stitches per minute.
- Lockstitch formation: each time the needle goes down, the rotary hook loops the top thread around the bobbin thread, locking the stitch.
- Color changes: single-needle machines pause for you to change thread. Multi-needle machines switch to the next needle automatically.
- Trimming: many machines automatically cut jump threads between sections.
What Is Digitizing?
Digitizing is the process of turning an image into embroidery instructions. A digitizer decides the stitch type (running, satin or fill), the stitch direction, the density, the underlay and the order of stitching. Good digitizing is the biggest factor in how clean and professional the final embroidery looks.
Single-Needle vs. Multi-Needle Machines

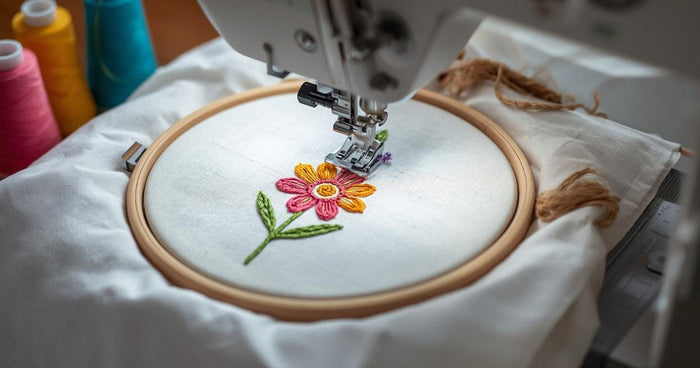

- Single-needle (home): affordable and compact, with one color at a time. They're great for hobbyists and small projects.

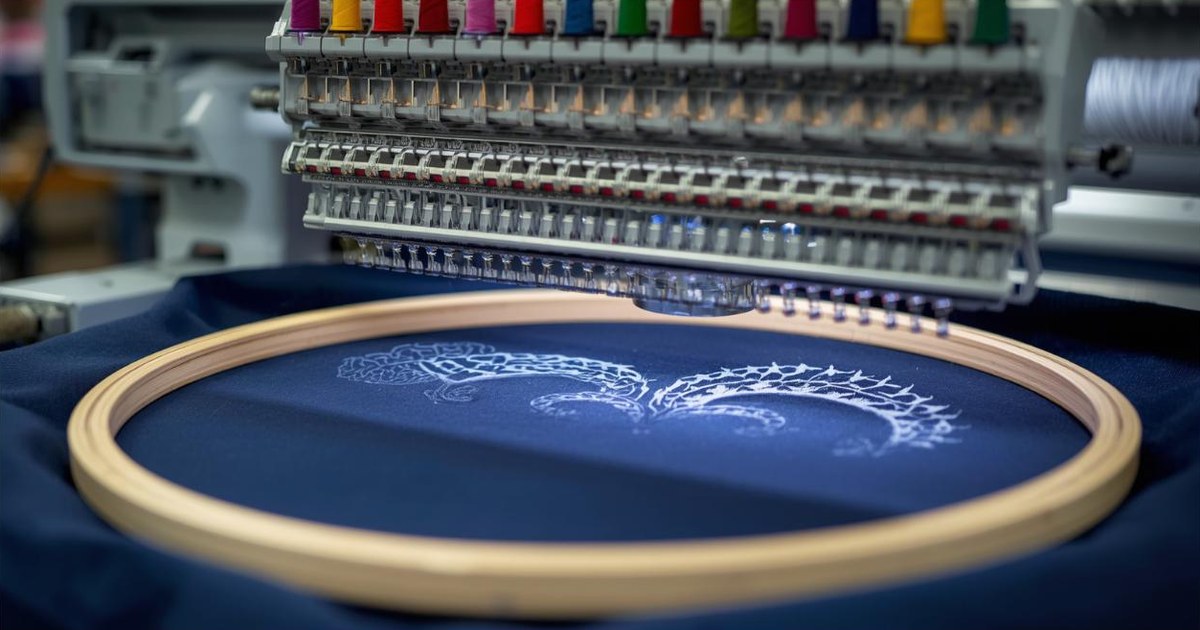

- Multi-needle (commercial): 4 to 15+ needles, automatic color changes and faster speeds, plus tubular arms for caps and sleeves. They're used by embroidery shops and businesses.
Types of Embroidery Stitches Machines Make
- Running stitch: outlines and fine details
- Satin stitch: smooth borders and lettering
- Fill (tatami) stitch: large solid areas
- Underlay: foundation stitches that stabilize the fabric before the top stitching
Frequently Asked Questions
How fast do embroidery machines stitch?
Home machines typically stitch 400–1,000 stitches per minute. Commercial machines can reach 1,200–1,500.
Can a regular sewing machine do embroidery?
Not automatically, but you can do free-motion embroidery by hand-guiding the fabric. Learn how in how to embroider with a sewing machine.
Why does machine embroidery need stabilizer?
Thousands of dense stitches pull on the fabric. Stabilizer prevents puckering, stretching and misalignment.
What thread do embroidery machines use?
Usually 40-weight polyester or rayon embroidery thread on top, with a lighter bobbin thread underneath.
From File to Fabric
Embroidery machines combine precise motion control with a classic lockstitch to turn digital designs into durable, textured art. Ready to try it? Read how to use an embroidery machine.
